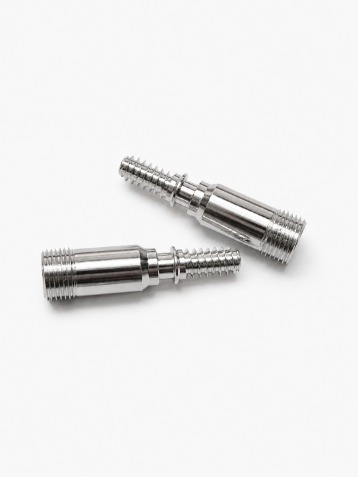

Precision Dual-Thread Stepped Shaft
This component demonstrates advanced Swiss CNC machining capabilities by integrating precision turning, dual external threads, deep-hole machining, and hex socket machining into a single compact part.Designed for demanding mechanical assemblies where concentricity, thread quality, and dimensional accuracy are critical.
ReSol Technical Showcase #005
Designed for demanding mechanical assemblies where concentricity, thread quality, and dimensional accuracy are critical.
Manufacturing Features

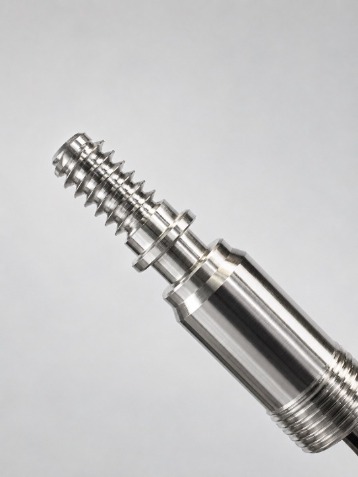

✓ Dual External Threads

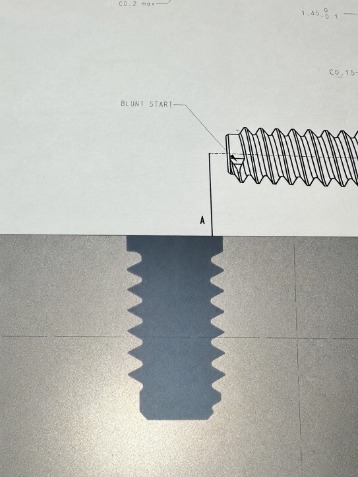

✓ Blunt Start Thread Profile
✓ Precision Deep Drilling
✓ Internal Hex Socket
✓ Multi-Step Diameter Turning
✓ 30° Precision Taper
✓ Fine Radius Transitions (R0.2)
✓ Tight Tolerance Machining
Technical Highlights
Unlike conventional threaded shafts, this component combines multiple precision features requiring accurate synchronization between turning and live-tool operations.
Critical machining points include:
* Thread profile consistency
* Blunt-start thread geometry
* Concentric deep-hole machining
* Precision hex broaching / milling
* Small-radius transitions
* Surface finish control
Applications
* Bicycle Components
* Medical Devices
* Precision Mechanical Assemblies
* Motion Control Equipment
* Robotics
* Industrial Automation
ReSol Engineering
At ReSol, we focus on integrating multiple precision machining features into a single component, delivering consistent quality and reliable manufacturing for demanding engineering applications.
Every machining feature is engineered to preserve both functionality and precision.
