7075-T6 Thin Wall CNC Housing OD86.2mm M24.8x0.75-6g Thread Custom Part

ReSol Technical Showcase #011

S45C Zinc-Plated Machine Base with Internal and External Threads

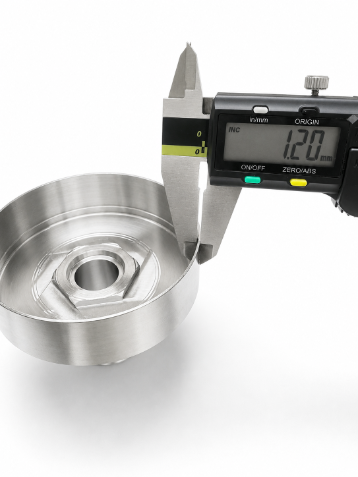

Manufactured from high-strength 7075-T6 aluminum alloy, this component features a maximum outside diameter of Ø86.2 mm and a main inside diameter of Ø84.0 mm, creating an approximately 1.2 mm thin-wall structure.

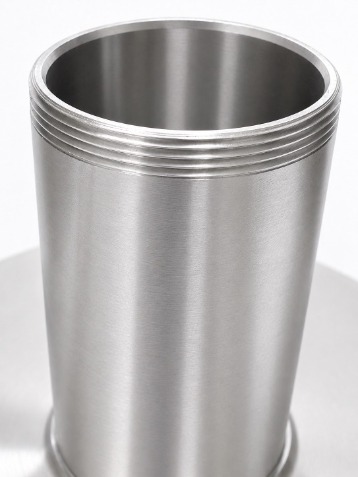

The component incorporates an M24.8 × 0.75–6g custom fine external thread. Compared with a standard coarse thread, this specification requires precise control of the thread diameter, pitch, and surface quality while maintaining concentricity between the threaded shaft and the large thin-wall housing.

Large thin-wall parts are susceptible to deformation and vibration during clamping and machining. The process therefore requires careful control of wall geometry, concentricity between multiple diameters, and the positional relationship between the threaded shaft and the main housing.

ReSol combines controlled machining sequences, workholding strategies, and cutting parameters to maintain dimensional stability while achieving a lightweight, integrated structure.




  • Approx. 1.2 mm Thin Wall
  •  7075-T6 High-Strength Aluminum
  •  Ø86.2 mm Large-Diameter Machining
  •  M24.8 × 0.75–6g Custom Fine Thread
  •  Concentric Structure Control
  •  Turning & Milling Integration

ReSol Engineering

At ReSol, we focus on integrating multiple precision machining features into a single component, delivering consistent quality and reliable manufacturing for demanding engineering applications.


Every machining feature is engineered to preserve both functionality and precision.
