SUS303 CNC Machined Stepped Shaft OD23/9 x 90mm with 1mm Precision Slots

ReSol Technical Showcase #009

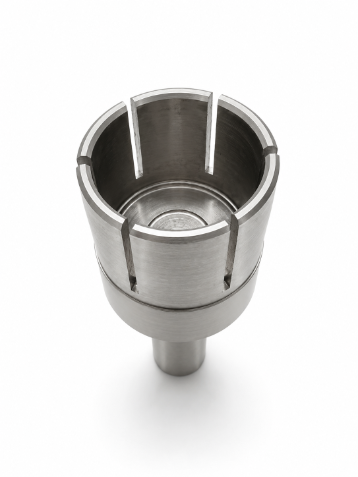

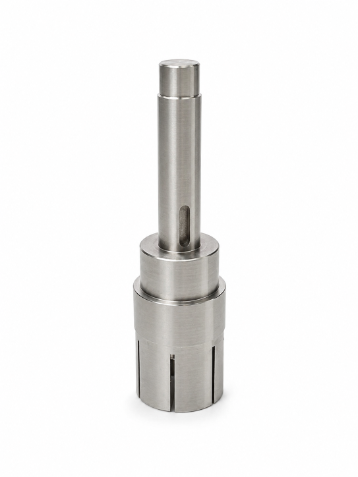

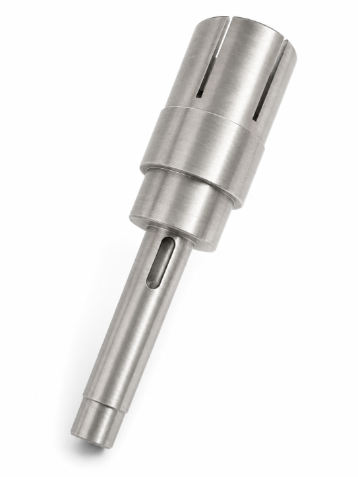

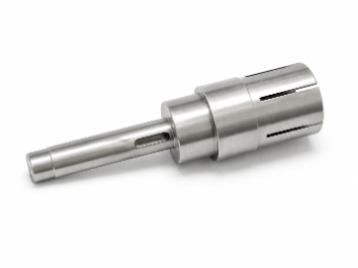

SUS303 Custom CNC Machined Stepped Shaft



Manufactured from SUS303 stainless steel, this component measures Ø23 mm at its maximum outside diameter, Ø9 mm at the shaft section, and 90 mm in overall length.

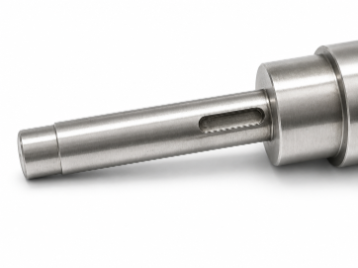

The part combines multiple stepped diameters, a long slender shaft, a side-milled slot, and multiple 1 mm precision slots around the lower cylindrical section.

The main machining challenges include maintaining concentricity across the stepped diameters, controlling deformation during narrow-slot machining, minimizing burrs, and preserving a consistent machined surface.

By integrating CNC turning and milling operations, ReSol maintains structural stability and consistent machining quality throughout the component. This capability is suitable for custom precision parts requiring slender shafts, stepped profiles, and narrow-slot features.





  • 1 mm Precision Slots
  •  Slender Shaft Machining
  •  Multi-step Turning
  •  Turning & Milling Integration

ReSol Engineering

At ReSol, we focus on integrating multiple precision machining features into a single component, delivering consistent quality and reliable manufacturing for demanding engineering applications.


Every machining feature is engineered to preserve both functionality and precision.
